NETGEAR ProSafe AX742

Utvidelsesmodul (en pakke 2) - for NETGEAR GSM7228, GSM7252, GSM7328, GSM7352; Next-Gen Edge Managed Switch M5300
Ikke på lager
Produsent NETGEAR
Artnr AX742
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    This accessory module is built to insert into any one of the 4 high-speed module bays found on either the ProSAFE GSM7428S or ProSAFE GSM7352S. Once inserted, the high-speed module bay can then be utilized with standard 10GBASE-X XFP modules for fiber connectivity at 10Gbps speeds. Specifically, this adapter module accommodates the ProSAFE AXM75110GBASE-SR “Short Reach” or ProSAFE AXM752 10GBASE-LR “Long Reach” XFP optics modules. The AX741 is hot-swappable at any time into the switch and provides hot-swappable installation or removal of standard 10GBASE-X XFP optics modules.

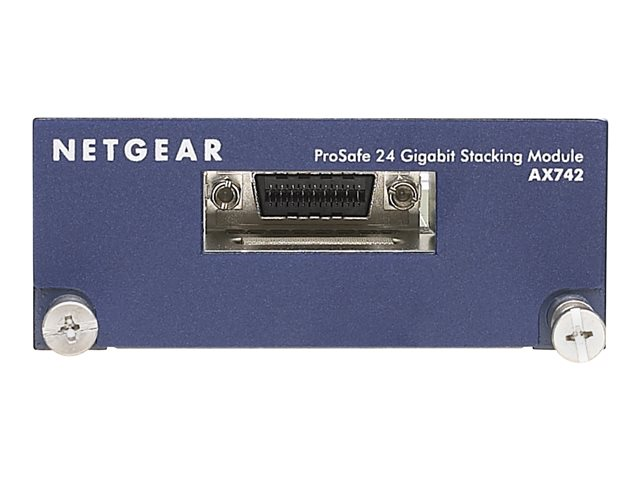

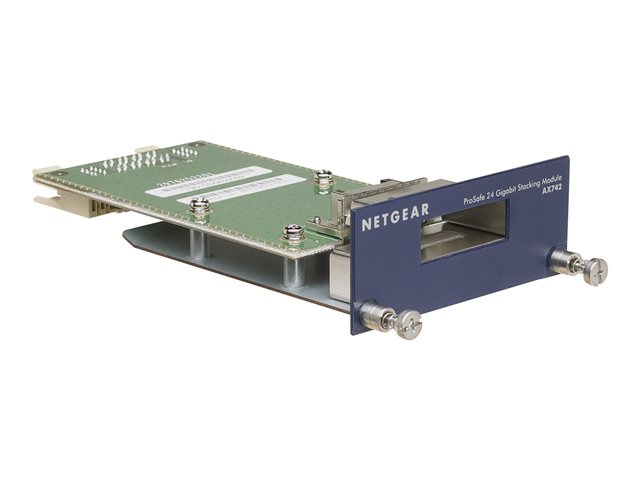

    ProSAFE AX742 24Gbps Stacking Kit

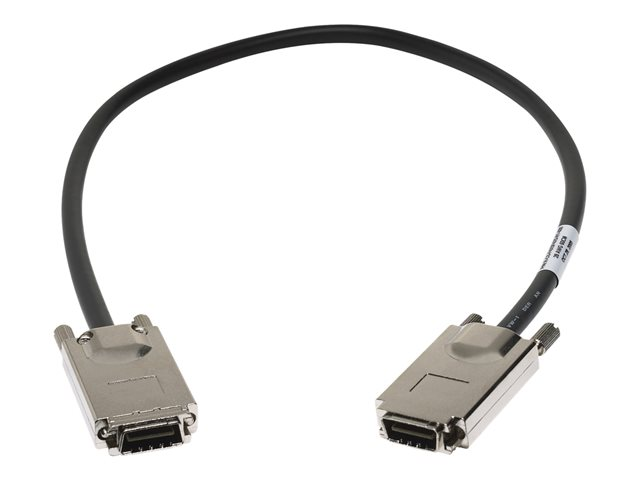

    This accessory kit is utilized to connect two switches together in order to configure them into an operational stack of switches. The kit supplies 2 AX742 Stacking modules and a single high-capacity stacking cable. A minimum of a single kit is required to create a stack between two switches. A group of up to 8 switches can be interconnected to form a single stack by cascading the connections between switches. It is recommended that a final connection be established between the first and the last switch to create a loop topology. This provides two 24Gbps connections per switch within the stack. Once connected the stack operates as a 48Gbps resilient, self-healing, bi-directional ring.
