Eaton Tripp Lite Series DisplayPort over Fiber Extender Kit

4K @ 30 Hz, RS-232, IR, USB, Duplex Singlemode LC, 6.2 mi., TAA - Sender og mottaker - video/lyd/infrarød/USB-utvider - DisplayPort - over fiberoptikk - opp til 10 km - 1310 nm - TAA-samsvar
Ikke på lager
Produsent Eaton
Artnr B127F-1A1-SM-DD
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    • Supports 4K resolution at 30 Hz for video clarity
    • Max transfer distance of 10 km using fiber optic technology

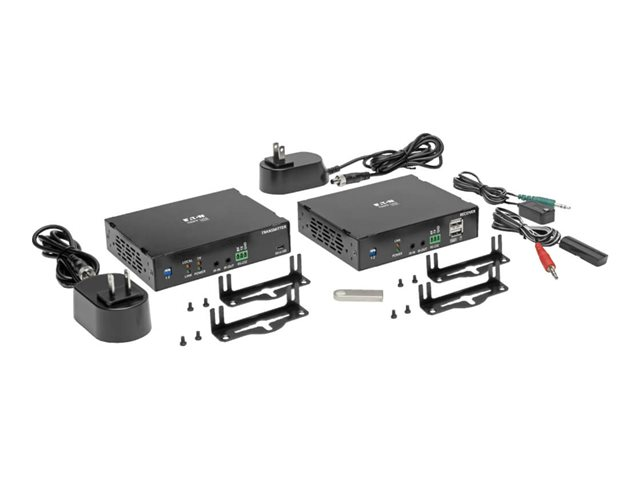

    • Includes a transmitter and receiver for versatile connectivity
    • Metal housing with included mounting kit for durability
    • Meets compliance standards including FCC and RoHS
    This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127F-1A1-SM-DD extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 6.2 miles (10 kilometers) away via user-supplied duplex singlemode LC fiber cabling.

    The B127F-1A1-SM-DD supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It's compatible with HDCP 2.2, DisplayPort 1.2a and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

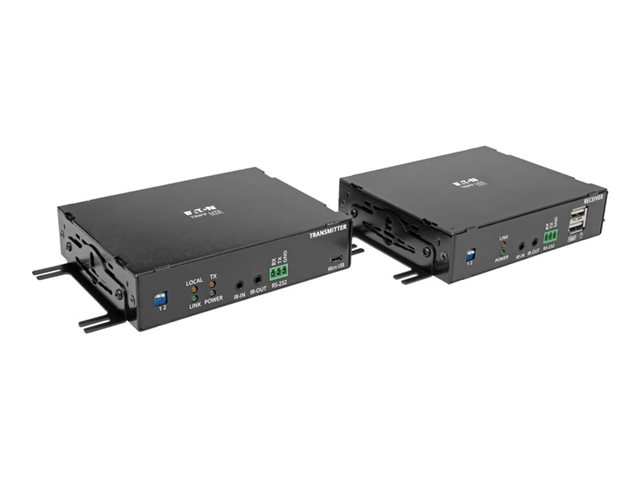

    The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time.

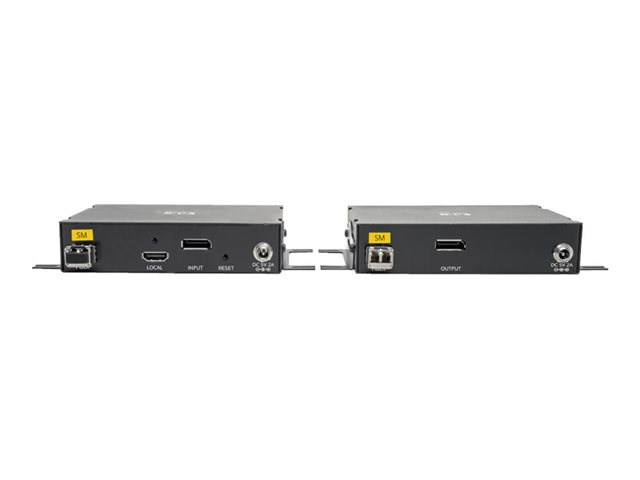

    The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as Tripp Lite's P580-Series). Then, connect the two units using a duplex singlemode LC fiber cable (Tripp Lite N520-Series). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 6.2 miles away.

    The B127F-1A1-SM-DD is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
