Broadcom BCM957414A4142CC

Nettverksadapter - PCIe 3.0 x8 - 25 Gigabit SFP28 x 2
Ikke på lager
Produsent Brocade
Artnr BCM957414A4142CC
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    • Dual-port pluggable media interface, which may be equipped with 25GbE or 10GbE SFP28/SFP+ optical transceiver or with copper direct-attach cable
    • Fully compliant to the SFF-8402 standard
    • X8 PCI Express v3.0 compliant
    • SR-IOV with up to 128 VFs
    • Function Level Reset (FLR) support
    • TruFlow flow processing engine
    • Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
    • VSwitch acceleration
    • Tunnel-aware stateless offloads
    • DCB support: PFC, ETS, QCN, DCBx
    • RDMA over converged Ethernet (RoCE)
    • SMBus 2.0
    • MCTP over SMBus
    • PCIe-based UART and KCS
    • Jumbo frames up to 9 KB
    • Advanced Congestion Avoidance
    • Multiqueue, NetQueue, and VMQ
    • IPv4 and IPv6 offloads
    • TCP, UDP, and IP checksum offloads
    • Large Send Offload (LSO)
    • Large Receive Offload (LRO)
    • TCP Segmentation Offload (TSO)
    • Receive-side Scaling (RSS)
    • Transmit-side Scaling (TSS)
    • VLAN insertion/removal
    • Interrupt coalescing
    • Network boot-PXE, UEFI
    • ISCSI boot
    • MSI and MSI-X
    • Conforms to the PCI Express Card Electromechanical Specification Rev. 3.0

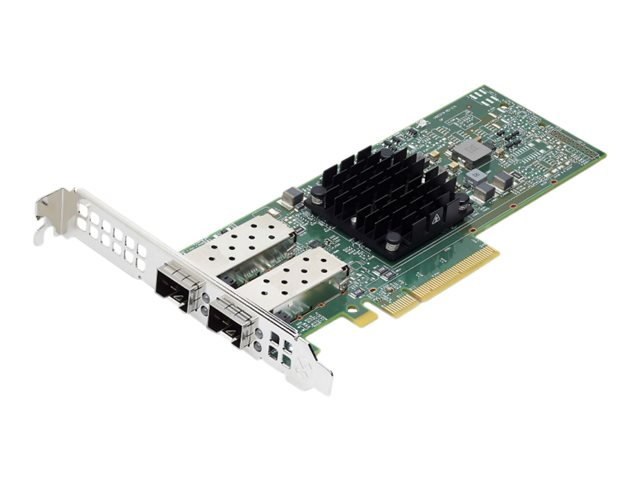

    The Broadcom BCM957414A4142CC is a dual-port 25 Gb/s or 10 Gb/s, PCI-Express Gen3 x8 Network Interface Card that supports both SFP28/SFP+ optical modules and copper-direct attach cable. The card uses the Broadcom BCM57414 25GbE MAC controller with the integrated dual-channel 25GbE SFI transceiver.
